601 Inconel Square Bar | ASTM B166 Inconel 601 Square Bar | ASTM B166 Alloy 601 Square Bar| ASTM B166 Inconel Alloy 601 Square Bars | Inconel 601 Square Bar | 601 Inconel Square Bar.

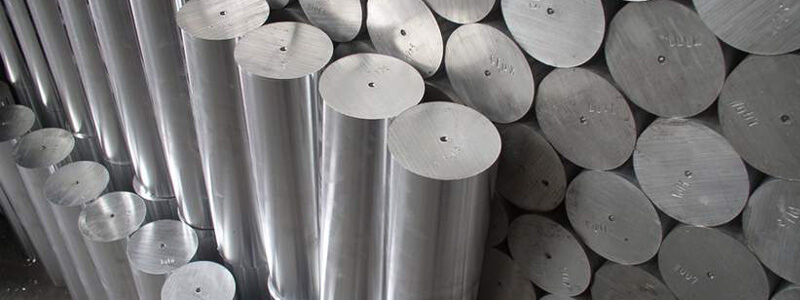

Neelkamal Alloys LLP is an acknowledged supplier and exporter of Inconel Alloy 601 Round Bars, which is excellent for sea water applications. Inconel 601 Flat Bars has excellent resistance to an extensive range of chemical atmospheres. Inconel 601 Square Bars is resisted in both localized and general corrosion, together with pitting, stress corrosion cracking and crevice corrosion. Inconel 601 Threaded Bars is generally used in applications like desulfurization of flue gas machinery and chemical process machinery. Inconel 601 Hollow Bars has fought the creation of grain boundary precipitates in the weld-heat affected region, making it an applicant for most petrochemical and chemical processing uses in the as-welded form. Inconel 601 Hexagonal Bars survives formic, phosphoric, sulfuric, acetic acids, and other non-oxidizing media. Inconel 601 Triangular Bars must not be used in oxidizing media or where oxidizing chemicals are accessible in plummeting media.
Quick Section Links
By means of the addition of Copper to the Nickel-Chromium-Molybdenum organization, Inconel 601 Bars is resistant to a wide variety of harsh chemicals, comprising sulphuric, hydrofluoric and hydrochloric acids. Inconel 601 Rods has exceptional resistance to both oxidizing and reducing media, and for the reason that of its resistibility, it can be used where "distressed" environments are to be expected to happen. The presented Inconel UNS N06601 Round Bars are exactly considered at our extremely cutting-edge manufacturing unit following industry defined rules.
Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
---|---|
Standard | ASTM B166 / ASME B166 |
Hex Bar size | 2-100mm A/F |
Round bar size | Diameter: 3-~800mm |
Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Square bar size | 4 to 100mm |
Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Rectangular Bars Section | 3.0 to 12.0mm thickness |
Threaded Bar Billet Size | 1/2 to 495mm Diameter |
Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Black Bar Standard Dimensions | Diameter / Height: |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
Condition | Hardened & tempered, annealed |
Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
Processing | Bar cutting to 650mm |
Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Our Inconel 601 Round bar conforms to NACE MR0175/ISO 15156 |
601 Inconel Square Bar | ASTM B166 Inconel 601 Square Bar | ASTM B166 Alloy 601 Square Bar| ASTM B166 Inconel Alloy 601 Square Bars | Inconel 601 Square Bar | 601 Inconel Square Bar.
601 Inconel Flat Bar | ASTM B166 Inconel 601 Flat Bar | ASTM B166 Alloy 601 Flat Bar | ASTM B166 Inconel Alloy 601 Flat Bars | 601 Inconel Flat Bars.
601 Inconel Bright Bar | ASTM B166 Inconel 601 Bright Bar | ASTM B166 Alloy 601 Bright Bar | ASTM B166 Inconel Alloy 601 Bright Bars | 601 Alloy Bright Bar
601 Inconel Hexagonal Bar | ASTM B166 Inconel 601 Hexagonal Bar | ASTM B166 Alloy 601 Hex Bars | ASTM B166 Inconel Alloy 601 Hexagonal Bar | 601 Inconel Hex Bar.
601 Inconel Threaded Bar | ASTM B166 Inconel 601 Threaded Bar | ASTM B166 Alloy 601 Threaded Bars | ASTM B166 Inconel Alloy 601 Threaded Bar | 601 Inconel Threaded Bars.
601 Inconel Triangular Bar | ASTM B166 Inconel 601 Triangular Bar | ASTM B166 Alloy 601 Triangular Bar | ASTM B166 Inconel Alloy 601 Triangular Bar | 601 Inconel Triangular Bars.
601 Inconel Forged Bar | ASTM B166 Inconel 601 Forged Bar | ASTM B166 Alloy 601 Forged Bars | ASTM B166 Inconel Alloy 601 Forged Bar | 601 Inconel Forged Bar.
601 Inconel Black Bar | ASTM B166 Inconel 601 Black Bar | ASTM B166 Alloy 601 Black Bar | ASTM B166 Inconel Alloy 601 Black Bars | 601 Inconel Black Bars.
601 Inconel Hollow Bar | ASTM B166 Inconel 601 Hollow Bar | ASTM B166 Alloy 601 Hollow Bar | ASTM B166 Inconel Alloy 601 Hollow Bars | 601 Inconel Hollow Bars.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
Contact us or click on request a quote button to get our competitive prices for 601 Inconel Round Bars. Neelkamal Alloys LLP maintain the large inventory of high quality ASTM B166 Inconel 601 Bars for sale to our clients throughout globally.
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
Inconel 601 | 0.10 max | 1.00 max | 0.5 max | 0.015max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
