800 Incoloy Square Bar | ASTM B408 Incoloy 800 Square Bar | ASTM B408 Alloy 800HT Square Bar| ASTM B408 Incoloy Alloy 800 Square Bars | Incoloy 800 Square Bar | 800HT Incoloy Square Bar.

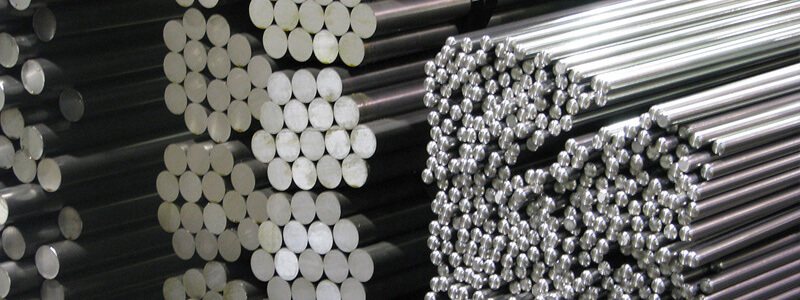

Neelkamal Alloys LLP is an acknowledged supplier and distributor of Inconel Alloy 800 / 800HT Round Bars, which is a wrought corrosion-resistant alloy and ideal for lower pressure applications. Presented Inconel 800 Round Bars are developed by employing finest-class factory inputs altogether with contemporary machinery in tandem with the well-defined quality norms. The offered Inconel 800HT Round Bars are precisely designed at our highly advanced manufacturing unit following industry defined guidelines. Inconel 800 Flat Bars are often used in bellows, marine hardware, chemical processing, agrichemical production and petrochemical production. Inconel 800HT Square Bars is a nickel-molybdenum-chromium-tungsten alloy with excellent general corrosion resistance and good fabricability. Inconel 800 Threaded Bars is considered as the most versatile corrosion resistant alloy available in the market. Inconel 800HT Hollow Bars has excellent corrosion resistance in a wide range of corrosive media and is especially resistant to pitting and crevice corrosion. Inconel 800 Hexagonal Bars is a nickel-chromium-molybdenum alloy with enhanced resistance to pitting, crevice corrosion and stress corrosion cracking.
Quick Section Links
Inconel 800HT Triangular Bars is a quite versatile Ni-Cr-Mo alloy with excellent resistance to pitting, stress-corrosion cracking, and crevice corrosion. Inconel 800 Bars is a nickel-molybdenum alloy with significant resistance to reducing environments, such as hydrogen chloride gas and sulfuric, acetic and phosphoric acids. Inconel 800HT Bars is a nickel-molybdenum alloy with excellent resistance to pitting, corrosion, and stress-corrosion cracking plus, superior thermal stability.
Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
---|---|
Standard | ASTM B408 / ASME B408 |
Hex Bar size | 2-100mm A/F |
Round bar size | Diameter: 3-~800mm |
Flat bar size | Thickness: 2 -100mm |
Width: 10 to 500mm | |
Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
Square bar size | 4 to 100mm |
Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
Rectangular Bars Section | 3.0 to 12.0mm thickness |
Threaded Bar Billet Size | 1/2 to 495mm Diameter |
Rectangles Size | 33 x 30mm to 295 x 1066mm |
Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
Black Bar Standard Dimensions | Diameter / Height: |
Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
Condition | Hardened & tempered, annealed |
Technique | Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
Processing | Bar cutting to 650mm |
Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
Our Incoloy 800/800HT Round bar conforms to NACE MR0175/ISO 15156 |
800 Incoloy Square Bar | ASTM B408 Incoloy 800 Square Bar | ASTM B408 Alloy 800HT Square Bar| ASTM B408 Incoloy Alloy 800 Square Bars | Incoloy 800 Square Bar | 800HT Incoloy Square Bar.
800 Incoloy Flat Bar | ASTM B408 Incoloy 800 Flat Bar | ASTM B408 Alloy 800HT Flat Bar | ASTM B408 Incoloy Alloy 800 Flat Bars | 800HT Incoloy Flat Bars.
800 Incoloy Bright Bar | ASTM B408 Incoloy 800 Bright Bar | ASTM B408 Alloy 800HT Bright Bar | ASTM B408 Incoloy Alloy 800 Bright Bars | 800HT Alloy Bright Bar
800 Incoloy Hexagonal Bar | ASTM B408 Incoloy 800 Hexagonal Bar | ASTM B408 Alloy 800HT Hex Bars | ASTM B408 Incoloy Alloy 800 Hexagonal Bar | 800HT Incoloy Hex Bar.
800 Incoloy Threaded Bar | ASTM B408 Incoloy 800 Threaded Bar | ASTM B408 Alloy 800HT Threaded Bars | ASTM B408 Incoloy Alloy 800 Threaded Bar | 800HT Incoloy Threaded Bars.
800 Incoloy Triangular Bar | ASTM B408 Incoloy 800 Triangular Bar | ASTM B408 Alloy 800HT Triangular Bar | ASTM B408 Incoloy Alloy 800 Triangular Bar | 800HT Incoloy Triangular Bars.
800 Incoloy Forged Bar | ASTM B408 Incoloy 800 Forged Bar | ASTM B408 Alloy 800HT Forged Bars | ASTM B408 Incoloy Alloy 800 Forged Bar | 800HT Incoloy Forged Bar.
800 Incoloy Black Bar | ASTM B408 Incoloy 800 Black Bar | ASTM B408 Alloy 800HT Black Bar | ASTM B408 Incoloy Alloy 800 Black Bars | 800HT Incoloy Black Bars.
800 Incoloy Hollow Bar | ASTM B408 Incoloy 800 Hollow Bar | ASTM B408 Alloy 800HT Hollow Bar | ASTM B408 Incoloy Alloy 800 Hollow Bars | 800HT Incoloy Hollow Bars.
STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN | OR |
Incoloy 800 | 1.4876 | N08800 | NCF 800 | NA 15 | ЭИ670 | Z8NC32-21 | X10NiCrAlTi32-20 | XH32 |
Incoloy 800HT | 1.4859 / 1.4876 | N08811 | NCF 800HT | NA 15(HT) | ЭИ670 | - | X8NiCrAlTi32-21 | XH32T |
Contact us or click on request a quote button to get our competitive prices for 800 Incoloy Round Bars. Neelkamal Alloys LLP maintain the large inventory of high quality ASTM B408 Incoloy 800HT Bars for sale to our clients throughout globally.
Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
Incoloy 800 | 0.10 max | 1.50 max | 1.00 max | 0.015max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
Incoloy 800HT | 0.06 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
Incoloy 800 / 800HT | 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
